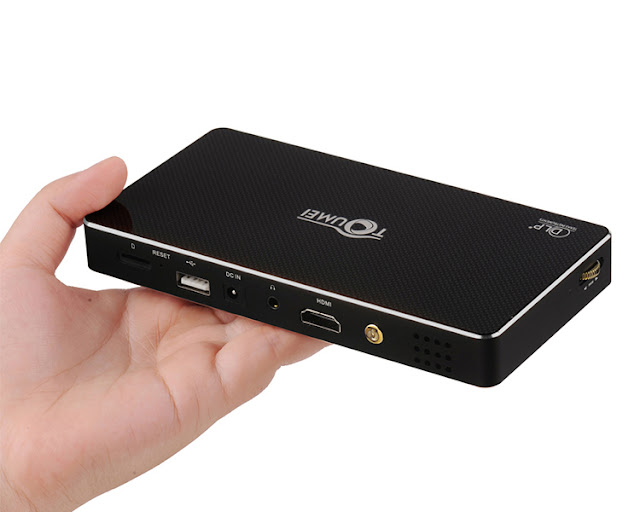

| Portable Intelligent Projector | ||
| Item |
Product
Characteristic
|
Product parameters
|
| OPTICS | Display Type |
DLP
|
| Display Chip |
TI 0.3 inch WVGA
DMD*RGBLED （With Off-axis Ray
Machine）
|
|
| Projector Feature |
Interactive
|
|
| Brightness |
100 ANSILumens
|
|
| Lamp |
OSRAM LED Lamps
|
|
| Uniformity |
>90%
|
|
| FOFO Contrast Ratio |
1000:1
|
|
| Standard Resolution |
WVGA 854*480
|
|
| PROJECTION | Throw Ratio |
1.4：1
|
| Throw Range |
30-120 inches
|
|
| Throw Distance |
1-3 Meter(s)
|
|
| Aspect Ratio |
4：3/16：9/16：10
|
|
| Keystone Correction |
Focus
|
|
| Projection Methods |
Front Projection
|
|
| SYSTEM PARAMETERS | CPU |
RK3128
|
| Clock Speed |
Quad-Core ARM
Cortex-A7 CPU with up to 1.2GHz
|
|
| Cache |
1G DDR3
|
|
| RAM |
8GB FALSH
|
|
| Operating System |
Android
4.4.4Customize
|
|
| Video Support |
Real-Time Video
Decoder for MPEG-1 MPEG-2 MPEG-4, H263,H264,H265,VC-1,RV 1080P
VP8,Sorenson SparkWAV
|
|
| Audio Support |
MP3,WMA,MP2,0GG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
|
|
| Photo Support |
Supports variety of
image formats browsing jpg png bmp etc
|
|
| FLASH Support |
Supports flash 11.1
|
|
| Extended Memory |
TF card and SSD Hard
Dish
|
|
| USB |
USB HOST 2.0
|
|
| TF Card |
Maximum supported 32G
|
|
| HDMI |
HDMI 1.4 in
|
|
| Bluetooth |
BT 4.0 (Support
external bluetooth Speaker, mouse and gamepad）
|
|
| WIFI |
2.4G/5G Dual-band
WIFI
|
|
| Remote Control |
Support IR and 2.4G
wireless remote control
|
|
| Power Input Parameters |
5V-3A DC
|
|
| Input Support |
USB ,IR
|
|
| OUTPUT INTERFACE | HDMI |
Only supports output
does not support input
|
| USB |
Able to read data
frim USB hard drive and support mouse access
|
|
| Headphone Output 1 * 5V DC input |
Audio output, 3.5mm
connectors (can connect headphones or speakers)
|
|
| 1*5V DC Input |
Power Adapter：DC 5V 3A
|
|
| ELECTRICAL SPECIFICATIONS | Total Power Consumption |
10W
|
| Power Performance |
AC100-240V,50/60Hz
|
|
| 3.7V Battery Inside |
4200mAh
|
|
| OTHER PARAMETERS | Product Size |
158*80*18mm
|
| Package Size |
190*130*65mm
|
|
| Net Weight |
265g
|
|
| Package Weight(1set) |
650g
|
|
| Package Weight(10set/box) |
7kg
|
|
| Carton Size(10set/box) |
350*280*220mm
|
|
